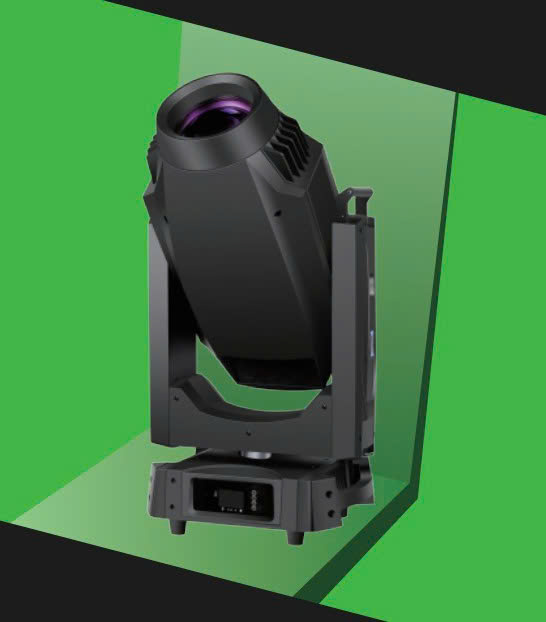

Stage Beam Light V-10

OUTPUT

• Light Sources: Powerful 1000W LED module
• LED life expectancy: 20,000 hours
• Diameter of frontal lens: 150 mm
• Color temperature: 7800K

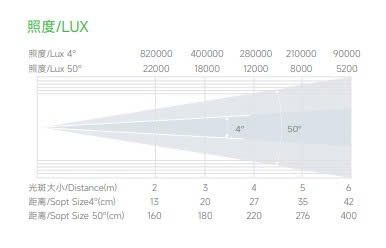

• Zoom Angle: 4–50°
• Lumen: 60,000

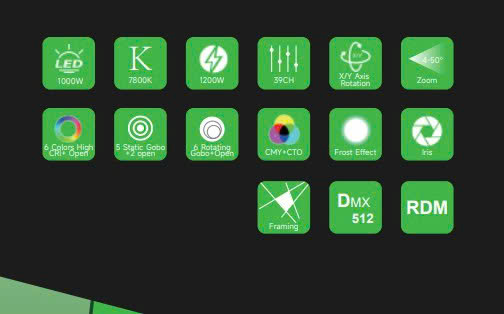

DYNAMIC EFFECTS

• Color Wheel 1: 6 colors + High CRI Filter + open
• Color Wheel 2: Independent CMY & CTO System
• Static Gobos: 5 + 2 open
• Rotating Gobos: 6 + open
• Gobo Shake: Yes
• Prism: 4 Facet Prism, rotatable
• Framing System: 4 Blades, each with separate movement and full blackout ±90° of the complete framing system, 180° rotation angle
• Iris System: linear 5% to 100% spot zoom
• Frost: YES
• Focus: YES
• Dimmer: YES
• Strobe: YES
• Pan/Tilt Range: 540° Pan 270° Tilt


CONTROL

• Control Protocols: DMX512, RDM
• DMX Channel: 39


ELECTRONIC

• Voltage Range: 100–240V, 50/60Hz
• Power consumption: 1200W


PHYSICAL

• Dimensions: 461326843mm
• Weight: 42KG (92.59lbs)


LISTINGS

• Certification: CE & RoHS
• Environment: IP20
