Stage Beam Light HL-230LB

OUTPUT

• Light Sources: 230W LED Module
• LED life expectancy: 20,000 hours
• Color temperature: 9000K
• Beam Angle: 0–2.3°
• Illuminance: 32,500 lx @10m


DYNAMIC EFFECTS

• Color Wheel 1: 13 colors + open
• Color Wheel 2: Rainbow Color Wheel

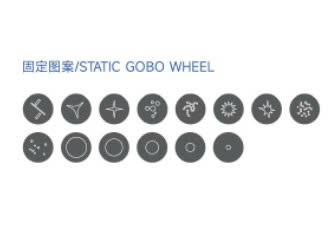

• Static Gobos: 9 + 5 open
• Prism: 8 + Honeycomb Prism, motorized, rotating
• Focus: Linear Focus
• Dimmer: 0–100% linear dimmer
• Shutter/Strobe: Electronic
• Pan/Tilt Range: 540° Pan, 270° Tilt


CONTROL

• Control Protocols: DMX, RDM
• DMX Channel: 16


ELECTRONIC

• Voltage Range: 100–240V, 50/60Hz
• Power consumption: 300W


PHYSICAL

• Dimensions: 319 × 205 × 477 mm
• Weight: 15.05 kg (33.18 lbs)


LISTINGS

• Certification: CE & RoHS
• Environment: IP20
