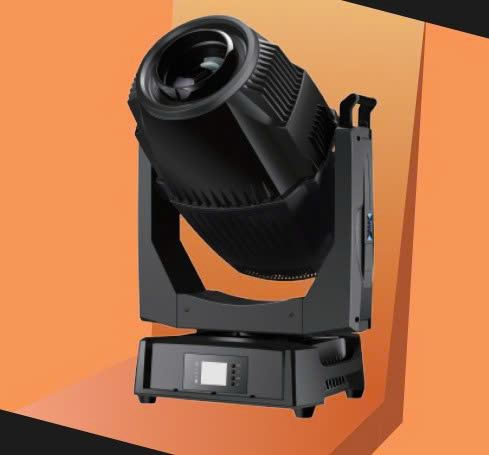

Stage Beam Light : HT-1000BSWZ IP

OUTPUT

• Light Source: Powerful 800W LED engine
• LED life expectancy: 20,000 hours
• Diameter of frontal lens: 170 mm
• Color temperature: 8000K

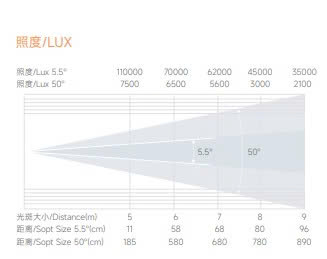

• Beam Angle: 5.5–50°
• Illuminance: 110,000 lx @ 5m


DYNAMIC EFFECTS

• Color Wheel 1: 6 colors + open
• Color Wheel 2: CMY Linear 100%
• Color Correction: CTO

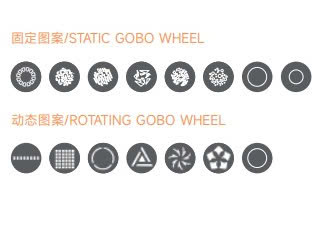

• Static Gobos: 6 + 2 open
• Rotating Gobos: 6 + open
• Gobo Shake: Yes
• Animation wheel: Yes
• Framing: 8 directions framing structure
• Prism: 3 Facet Prism, motorized, rotating
• Frost: Motorized
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Iris: Motorized
• Pan/Tilt Range: 540° Pan, 270° Tilt


CONTROL

• Control Protocols: DMX, RDM
• DMX Channel: 34


ELECTRONIC

• Voltage Range: 100–240V, 50/60Hz
• Power consumption: 1000 W


PHYSICAL

• Dimensions: 326 × 476 × 705 mm
• Weight: 42.84 kg (94.42 lbs)

LISTINGS

• Certification: CE & RoHS
• Environment: IP65
