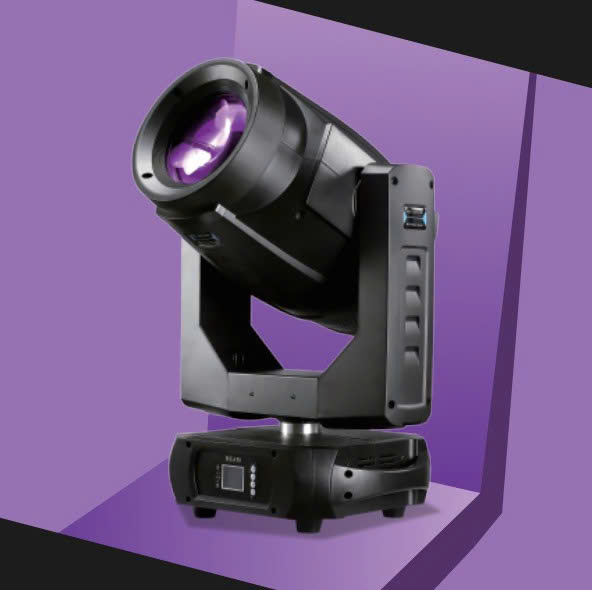

Stage Beam Light HL-420BSW

OUTPUT

• Light Sources: Top-level LED module 360w
• LED life expectancy: 20,000 hours
• Color temperature: 9000K
• Zoom Angle: 4–50°

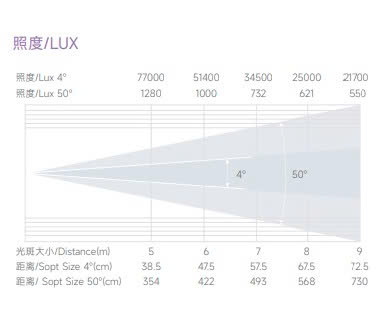

• Illuminance: 17,200lx@10m


DYNAMIC EFFECTS

• Color Wheel 1: 7 colors + open
• Color Wheel 2: CMY Linear 100%

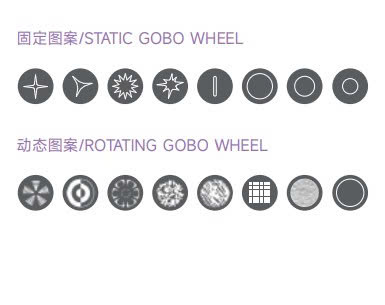

• Static Gobos: 5 + 3 open
• Rotating Gobos: 7 + open
• Gobo Shake: Yes
• Prism: 8+Linear Prism, motorized, rotating
• Frost: Motorized
• Focus: Linear Focus
• Dimmer: 0–100% linear dimmer
• Shutter/Strobe: Electronic
• Pan/Tilt Range: 540° Pan, 270° Tilt


CONTROL

• Control Protocols: DMX, RDM
• DMX Channel: 20/25


ELECTRONIC

• Voltage Range: 100–240V, 50/60Hz
• Power consumption: 450W


PHYSICAL

• Dimensions: 401 × 290 × 682.7 mm
• Weight: 26.9 kg (59.30 lbs)


LISTINGS

• Certification: CE & RoHS
• Environment: IP20
